Drainage channel UD Pro black

Product Details

Article No. A0003398
Manufacturer EAN 4018448126516
Content 1.0 m  | €33,59 / m
Availability In stock
Recommended Products

€33,59

incl. 25% VAT plus shipping

Delivery time: 1–3 working days
  • Complete channel system for surface drainage outdoors
  • Sturdy PVC channel body with aluminium grating in black
  • Load capacity up to 25 kN in a concrete bed, frost and salt water resistant

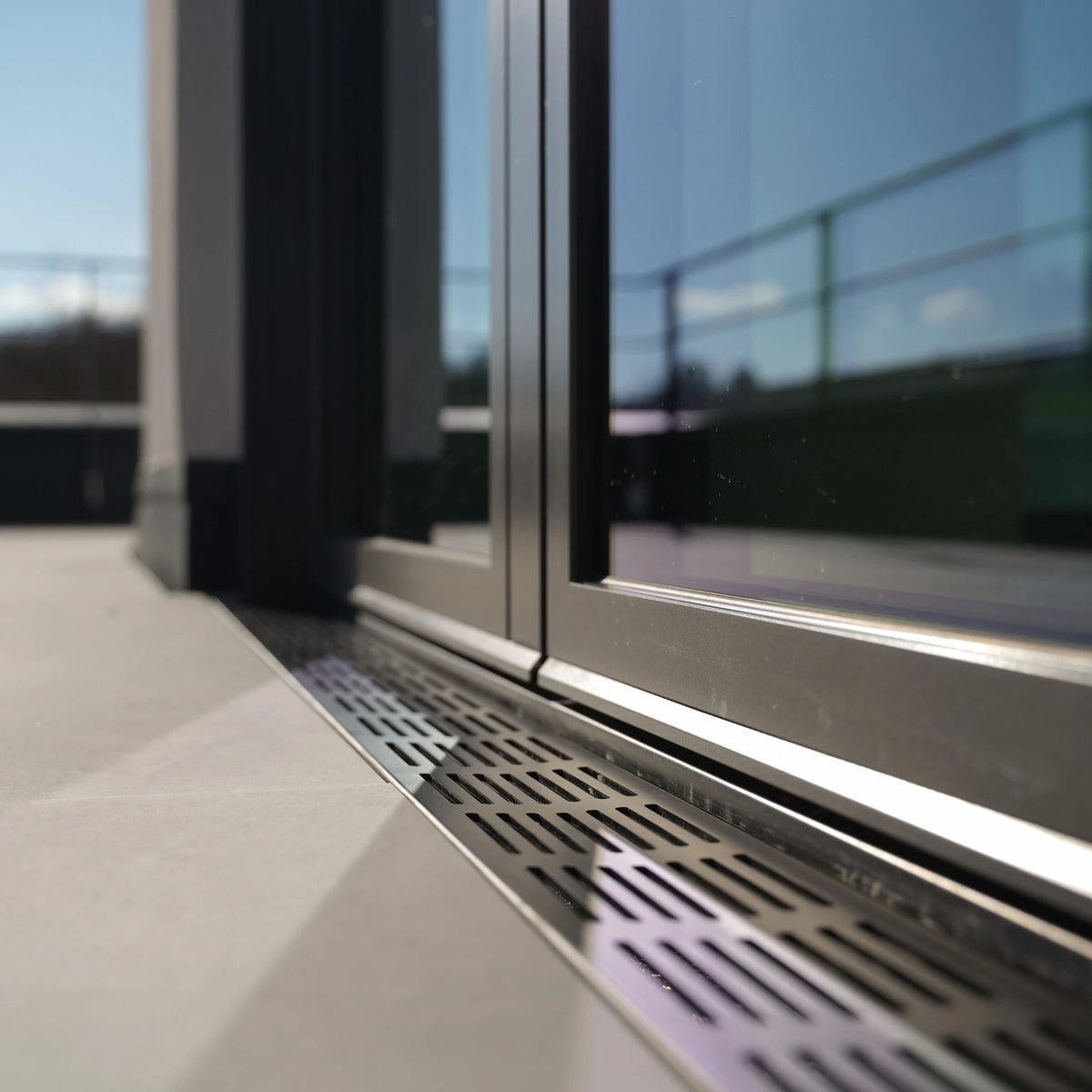

Black grating for modern outdoor areas

The black grating picks up the colour of modern window frames, front doors and railings and creates a deliberate graphic accent on light surfaces. On dark porcelain stoneware or basalt, on the other hand, it almost disappears. Technically, the channel works like every UD Pro: it catches rainwater in front of patio doors, at house entrances or along paths before it reaches the threshold or facade, and leads it to the waste connection in a controlled way.

UDP 65 or UDP 100?

UDP 65 is tall and narrow and drains up to 360 l/min. It is the right choice when a lot of water collects on large or steeply sloping areas.

UDP 100 drains up to 330 l/min and suits most terraces and entrance areas.

Both versions are available in lengths of 100 and 200 cm. Several channels can be joined to form one continuous line.

What else you need for installation

To connect to the waste pipe, use the matching UD Pro outlet. The horizontal version sits at the end of the channel in place of the end cap, the vertical version drains the water downwards. Depending on the version, the outlets fit pipes from DN40 to DN110. Channels, outlets and end caps are bonded permanently and watertight with PVC-U adhesive.

Frequently asked questions

How is the channel installed?
We recommend installing it in a concrete bed. Only then does the channel stay stable over the long term and reach its full load capacity of 25 kN.

Can vehicles drive over the channel?
The channel is designed for terraces, paths and entrance areas. If the area is to be driven on regularly, please contact us beforehand so we can find the right solution.

Is the grating available in another colour?
Yes, as the UD Pro drainage channel silver.

Learn more in our article "Professional solutions for outdoor drainage".
